特點：

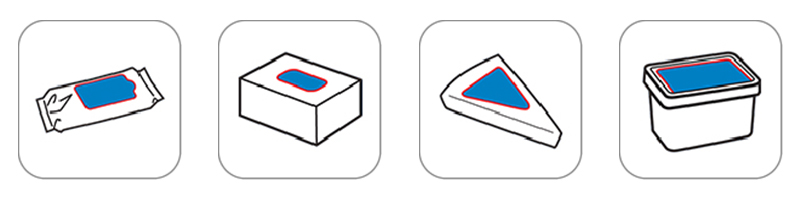

1.適用範圍廣，可滿足產品寬度30mm～350mm的產品平麵貼標和不幹膠膜，更換覆標機構可滿足不平整表麵貼標；

2.貼標精度高，細分步進電機或伺服電機驅動送標，送標精準；標帶繞行糾偏機構設計，保證標簽牽引過程中不左右偏移；偏心輪技術應用於牽引機構，牽引標簽不打滑，確保出標精準；

3.，調整座有6個可調的方向和角度，適用性加強，不同產品之間的轉換變得簡單、省時；

4.智能控製，自動光電追蹤，具備無物不貼標，無標自動校正和標簽自動檢測功能，防止漏貼和標簽浪費；

5.觸摸屏操作界麵，各種參數調整簡單快捷，操作方便；

主要參數：
貼標速度：約0-260P/分鍾（與產品尺寸大小有關）
貼標精度：±1mm（不包含產品標簽等誤差）
適用產品尺寸：長度30-280mm；高度30-200mm；
適用標簽範圍：長度10～260mm、寬度10-155mm
最大標簽供應： 外徑 300以內，內徑76mm
使用環境：0-50℃
環境相對濕度：15-85%

電壓規格：AC220V 50/60Hz
外形尺寸：約L2200*W1400*H1750mm

重 量: 約160Kg

貼標機標簽參數(僅供參考)：
標簽間距：2-3mm±0.2mm
標簽來料方式為卷料
材料：建議采用格拉辛底紙，底紙避免有切傷或者切痕，影響貼標正常操作；

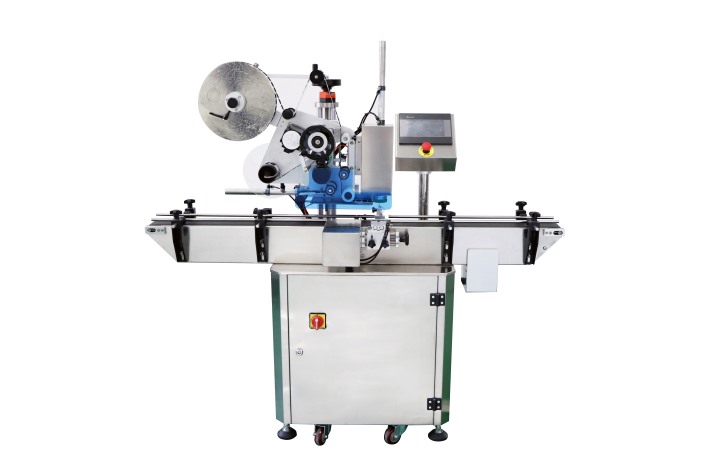

Pressure sensitive labeler for top side

Features:

1. Wide application range, can meet product width labeling and self-adhesive film with product width 30mm～350mm, and replace the labeling mechanism to meet the uneven surface labeling;

2. High precision of labeling, subdivided stepper motor or servo motor drive to send labels, accurate delivery; label belt bypass correction mechanism design, to ensure that the label does not shift left and right during the traction process; eccentric technology applied to traction mechanism, traction The label does not slip, ensuring accurate bidding;

3. The adjustment seat has 6 adjustable directions and angles, the applicability is strengthened, and the conversion between different products becomes simple and time-saving;

4. Intelligent control, automatic photoelectric tracking, with no object and no labeling, no standard automatic calibration and automatic label detection to prevent leakage and label waste;

Main parameters:

Labeling speed: about 0-260P/min (related to product size)

Labeling accuracy: ±1mm (does not include product label and other errors)

Applicable product size: length 30-280mm; height 30-200mm;

Applicable label range: length 10 ~ 260mm, width 10-155mm

Max label supply: OD 300 or less, inner diameter 76mm

Use environment: 0-50 °C

Relative humidity: 15-85%

Voltage specification: AC220V 50/60Hz

Dimensions: about L2200*W1400*H1750mm

Weight: about 160Kg

Labeling machine label parameters (for reference only):

Label spacing: 2-3mm ± 0.2mm

Label feeding method is coil material

Material: It is recommended to use Glassine body paper, it should to avoid cuts , which affects the normal operation of labeling;
